AIT S-6 Resistance Welding Electrode

The S-6 series is very similar to the Hughes ESQ design, except the ESQ electrodes are 1.53” long. This design is a parallel gap electrode that allows the end user to set the gap width using the weld head. Product comes standard with 20 degree angles and 1.50 inch length. Custom materials are available. Contact the factory for assistance at (870)-269-4367.

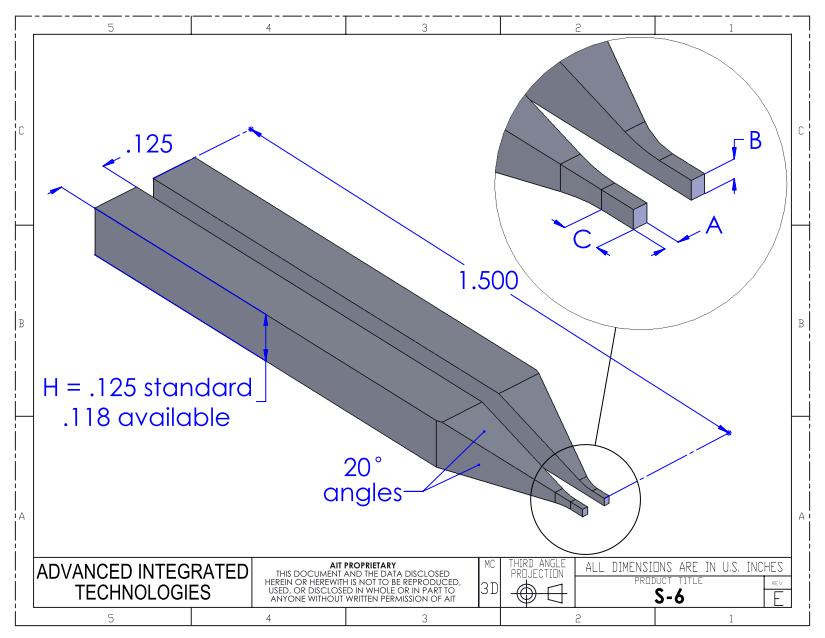

Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-6-M-A.010B.010C.020 is a molybdenum electrode with an A dimension of .010  .  You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.  Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number.
Invalid Input
Invalid Input
Invalid Input
Invalid Input

To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below.

Invalid Input

AIT Standard Part Numbers :
S-6-M -A.010B.010C.020

Invalid Input

AIT Standard Part Numbers :
S-6-2 -A.010B.010C.020

Invalid Input

AIT Standard Part Numbers :
S-6-W -A.010B.010C.020

Invalid Input

AIT Standard Part Numbers :
S-6-M -A.010B.015C.035

Invalid Input

AIT Standard Part Numbers :
S-6-2 -A.010B.015C.035

Invalid Input

AIT Standard Part Numbers :
S-6-W -A.010B.015C.035

Invalid Input

AIT Standard Part Numbers :
S-6-M -A.015B.025C.060

Invalid Input

AIT Standard Part Numbers :
S-6-2 -A.015B.025C.060

Invalid Input

AIT Standard Part Numbers :
S-6-W -A.015B.025C.060

Invalid Input

AIT Standard Part Numbers :
S-6-M -A.025B.045C.100

Invalid Input

AIT Standard Part Numbers :
S-6-2 -A.025B.045C.100

Invalid Input

AIT Standard Part Numbers :
S-6-W -A.025B.045C.100

To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments:

Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
