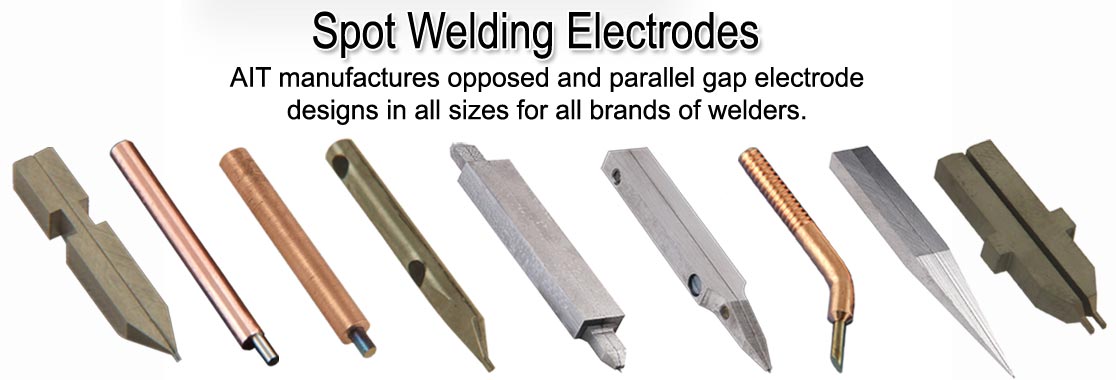

Spot Welding Electrodes

AIT manufactures opposed and paralled gap weld electrode designs in all sizes for all brands.

Why get your electrodes from us?

• Shorter lead time.

• Lower prices than the company that manufactured your welder.

• Our quality is guaranteed

• Custom electrodes are no problem.

Get the benefit of our 25 years of experience building electrodes for Unitek, Hughes, Avio, and many other welders.  We are the world's leading supplier of welding electrodes.

 Scroll down to browse our selection and review our cross referrence chart.

Click these images to see product drawings and request a quote.

Micro Tip Welding Electrodes

Female Cap Electrodes

Pointed	Dome	Flat	Offset	Truncated	Radius

Male Cap Electrodes

Pointed	Dome	Flat	Offset	Truncated	Radius

Straight Electrodes

Dome	Pointed	Flat	Offset	Truncated	Radius	30° Offset

Compound Dome Nose Type	Compound Flat Nose Type	Compound Insert Nose Type

Back-Up Electrodes

Flat-Faced	Compound Flat-Faced	Rectangular-Faced	Square-Faced	Alternative Square-Faced

 MALE AND FEMALE CAP ELECTRODE SHANKS

Shanks for Male Cap Electrodes	Shanks for Female Cap Electrodes

Advanced Integrated Technologies ( AIT ) is the industry leading manufacturer of resistance welding electrodes for all makes of welders including Palomar/Hughes, Unitek, Avio, MacGregor, and Sunstone Engineering. Our efficient manufacturing processes allow us to build very affordable electrodes. We build both parallel gap and opposed welding electrodes, in all RWMA materials. Our standard product line of resistance welding electrodes covers a broad spectrum representing many applications. Despite the diversity of our product line, we still do a very large percentage of custom work, building electrodes to the specification and design of the end user. If you need micro resistance welding electrodes, call us today and see how Advanced Integrated Technologies ( AIT ) can help you.

Advanced Integrated Technologies has been building micro resistance welding electrodes for over twenty-five years. We began in the early days with Hughes Aircraft building the duo tip and esq style electrodes, often categorically called parallel gap electrodes. Hughes was unable to get their new duo tip design successfully built anywhere in California. They were eventually put in touch with Paul Balentine, founder of AIT, who built these tiny electrodes successfully with a micro grinder. AIT went on to establish a long track record of building quality resistance welding electrodes for many customers all over the world.

Micro resistance welding electrodes come in either square shank or round shank designs, which are built to match the electrode holder design. The round shank electrodes are either single point style used for opposed welding, or they are parallel gap electrodes which have a mirrored left and right side that both touch the weld target on the top side. Examples of this are our S20 and S23 style electrodes which are equivalent to the Unitek Unibond C series electrodes. All other styles of micro resistance welding electrodes are square shank parallel gap, and are available either bonded to an insulator, or separate as two individual halves for customers who can set the gap spacing with their electrode holder.

The need to concentrate the welding current and pressure in the area in which the weld is desired often requires the use of special electrode shapes. This need is usually determined simply by examining the application at hand. AIT offers a wide variety of designs from its stock to provide resistance welding electrodes for most applications. These standard electrodes are furnished with either flat or slightly rounded (convex) tip surfaces. These tip surfaces are generally suited to many applications without further modifications. In applications where special tip shapes are desired to provide optimum results, AIT can build to your specifications. Call us today and see how AIT can help you obtain the resistance welding electrodes for your application.

AIT-UNITEK-HUGHES-MICROJOIN-AVIO-ELECTRODE PART NUMBER CROSS REFERRENCE CHART
