AIT S-15 Resistance Welding Electrode

The S-15 series is a fully customizable probe electrode designed for use with the Miyachi Unitek GHP and HFP handpieces. Custom materials are also available. Contact the factory for assistance at (870)-269-4367.

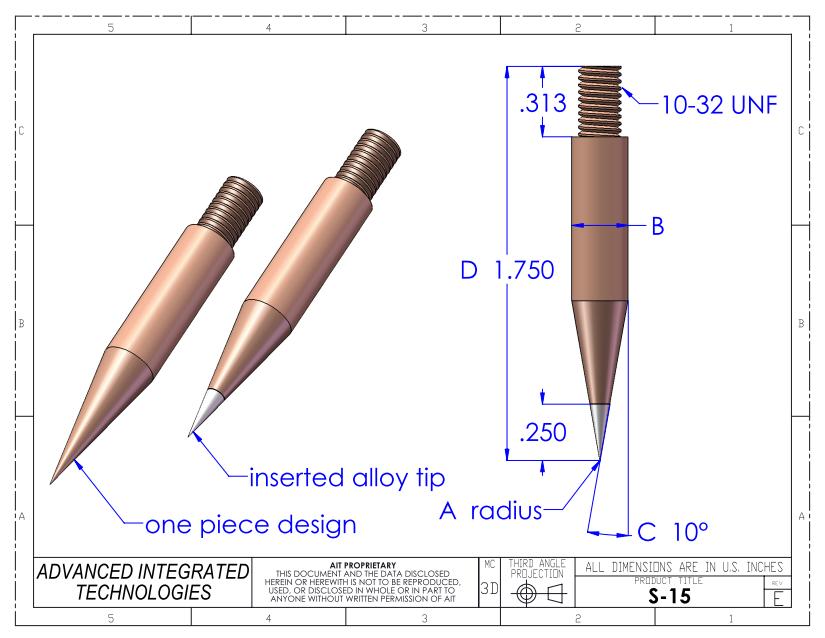

Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-15-2-A.003B.250C10D1.75 is a copper electrode with an A radius of .003  .  You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.  Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number.  Equivalent Miyachi part numbers are listed below cross referenced to AIT part numbers.
Invalid Input
Invalid Input
Invalid Input
Invalid Input

To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below.

Invalid Input

AIT Standard Part Numbers :
S-15-2-A.003B.250C10D1.75

Miyachi Part Numbers :
EP0802

Invalid Input

AIT Standard Part Numbers :
S-15-3-A.003B.250C10D1.75

Miyachi Part Numbers :
EP0803

Invalid Input

AIT Standard Part Numbers :
S-15-11-A.003B.250C10D1.75

Miyachi Part Numbers :
EP0811

Invalid Input

AIT Standard Part Numbers :
S-15-M-A.003B.250C10D1.75

Miyachi Part Numbers :
EP0820

To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments:

Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
