AIT S-14 Resistance Welding Electrode
The S-14 series is designed after the Hughes GW012 type, and is a very long deep access parallel gap electrode with an insulator (spacer) that binds the two halves together and establishes the width of the gap. This series is usually chosen for welding applications with tall obstacles around the welding target. Custom materials are available. Contact the factory for assistance at (870)-269-4367.

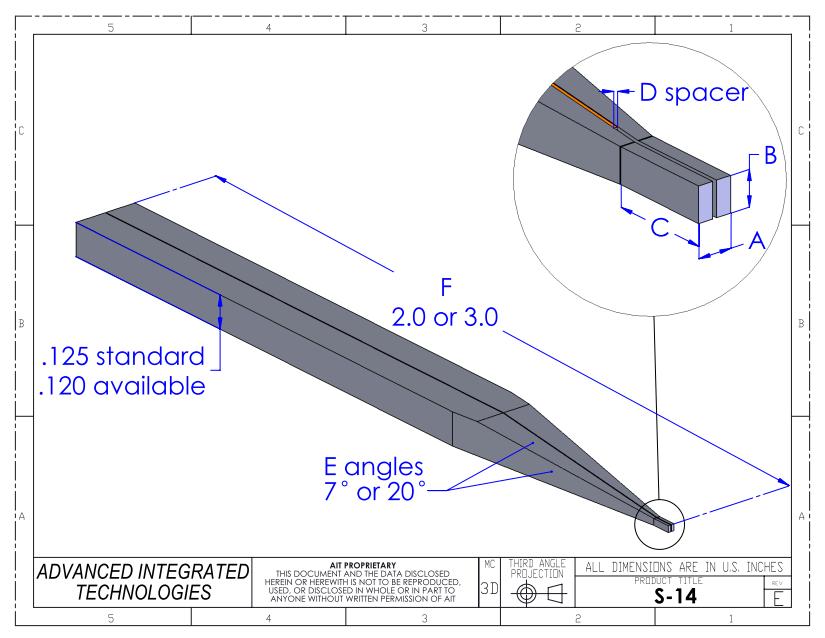

Understanding AIT part numbers is very simple. Various dimensions on the drawing are represented by letters, which correspond to values in the part number. The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-14-M-A.015B.015C.040D.0015E7F3.00 is a molybdenum electrode with an A dimension of .015 . You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section. Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number. Equivalent Hughes part numbers are listed below cross referenced to AIT part numbers.
