AIT S-27 Resistance Welding Electrode

The S-27 series electrode is equivalent to the EL-125 series electrodes developed by Hughes and later Palomar Products. The electrode are primarily used in grip type hand piece welders. Tips are available in class 2 copper, glidcop, copper-tungsten, molybdenum, and tunsten. Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the electrode series and material, followed by various dimensions. You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.
Contact the factory for assistance at (870)-269-4367.

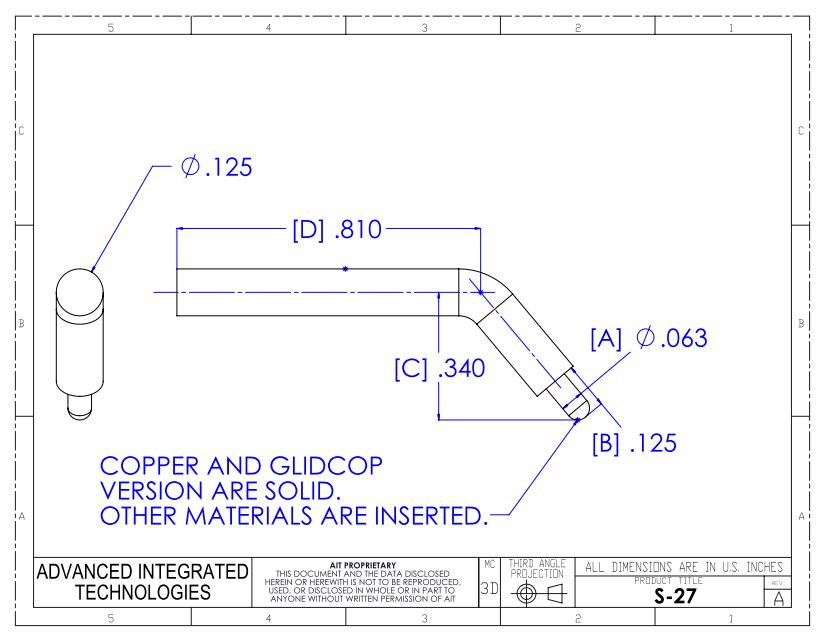

Understanding AIT part numbers is very simple. Various dimensions on the drawing are represented by letters, which correspond to values in the part number. The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-27-M-A.007B.005C.012D.0015 is a molybdenum electrode with an A dimension of .007 . You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section. Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number. Equivalent Hughes part numbers are listed below cross referenced to AIT part numbers.
Invalid Input
Invalid Input
Invalid Input
Invalid Input

To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below.

Invalid Input

AIT Standard Part Numbers :
S-27-11-A.063B.125C.340D.810

Hughes Part Numbers :
EL-125-11

Invalid Input

AIT Standard Part Numbers :
S-27-W-A.063B.125C.340D.810

Hughes Part Numbers :
EL-125-12

Invalid Input

AIT Standard Part Numbers :
S-27-M-A.063B.125C.340D.810

Hughes Part Numbers :
EL-125-00

To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments:

Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
