AIT SLD-3 Reflow Soldering Thermode

The SLD-3 is a small round peg tip attached to a copper shank.  This thermode is a direct replacement for the Unitek 17P series thermodes.  Custom materials are available. Contact the factory for assistance at (870)-269-4367.

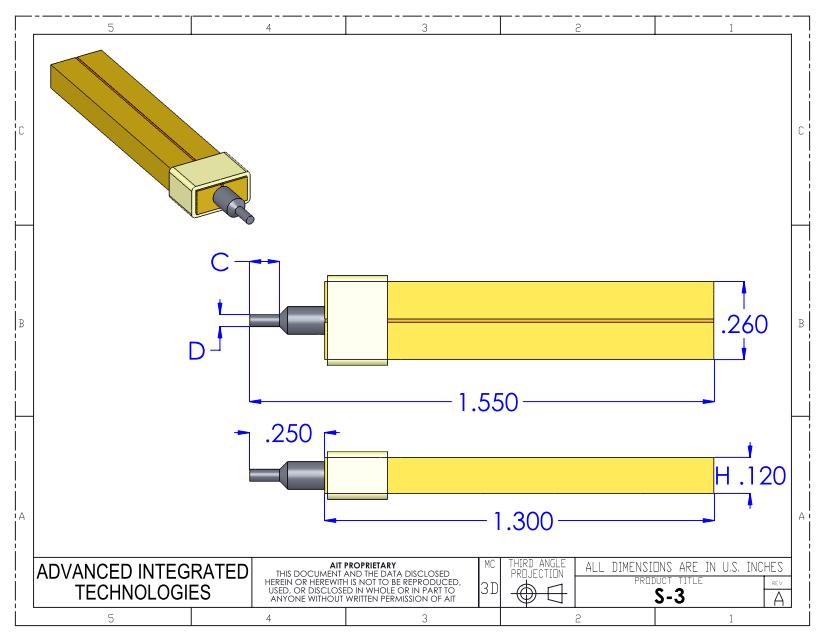

Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the thermode series and material, followed by various dimensions. For example, part number SLD-3-W-C.070D.040E.060-J9-O is a tungsten tip with a D dimension of .040, a J type thermocouple 9” long, and an Omega two prong plug.  You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.  Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number.

Name: Company: Email: Phone: SLD-3- C- D- E- Thermocouple- Comments: To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below. To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments: Qty SLD-3-W-C.070D.020E.060-J9-O SLD-3-W-C.070D.040E.060-J9-O AIT Standard Part Numbers Wire Length- Plug Type- SLD-3-W-C.200D.050E.060-J9-O SLD-3-W-C.070D.075E.080-J9-O SLD-3-W-C.070D.093E.080-J9-O 17P20 Unitek 17P40 17P50 17P75 17P93

Click image to enlarge.
SLD-3 Reflow Soldering Thermode
Thermo-couple Type Material Max Temp Range
E ChromegaMaterial®/Constantan 900°C (1652°F)
J Iron / Constantan 750°C (1382°F)
K Chromega® / Alomega® 1250°C (2282°F)
Large Phono Plug Small Phono Plug Omega 2 Prong Plug
large_phono_plug_size small_phono_plug_size omega_two_prong_plug_size
