Avio Displacement Pulse Heat Power Supply
Ultimate Pulse Heat Controller with Concurrency Control of Temperature and Displacement!
TCW-DP100

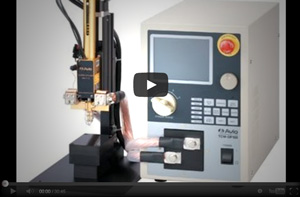

Avio TCW-DP100 Displacement Technology
- High Precision Displacement Control: Overtravelling amount is controlled by feedback of displacement amount in 1μm resolution, and uniform melting amount can be realized.
- Wide Variety of Monitoring Functions (Temperature, Displacement)
- Digital Temperature Control: High speed and highly accurate temperature control is realized by the digital PID control method, making the unit suitable for fine wires and micro-miniature works.
- Release Function: After heating, the solder thickness between the works can be secured.
- Four Stage Heating: Various temperature profiles are realized to cope with the diversified applications
- Built-in Motor Control Function
- User Interface: RS-232C&I/O is standard equipped making the unit easy to interface with the external equipment such as the case of incorporating in an automated system.
Melting Amounts Control
Micro Co-axial Cable
- No Spread Wire (Damage Reduction)
- No Solder Bridge
Joining Gap Control
Solar Panel Module
- Enhancement of Joining Strength
- Reduction of Residual Stress
*Reflow head motor drive unitl Model NA-201P is required for use with Model TCW-DP100.*
| Features | TCW-DP100 |
| Heating Temperature |
Room temp~600°C in 1°C step, E type/ J type (option) Room temp~900°C, K type (option) |
| Heating Time | 0.00-99.99 seconds |
| Rated Capacity | 750 VA, 50% duty cycle |
| Heating Steps | 4 Steps |
| Monitor | Sink Amount, Temperature, Work Height |
| Motor Resolution | 1 μm/pulse |
| Displacement Resolution | 1μm |
| Interface | RS-232C, I/O |
| Transformer | Built-In |
| Tap Voltage | 0.88 V, 1.24 V, 1.75 V, 2.47 V, 3.5 V |
| Power Source | AC 200-240 V±10%, 1Φ, 50/60 Hz, 15 A |
| Dimension (mm) | 220x400x320 |
| Weight | 23kg |
