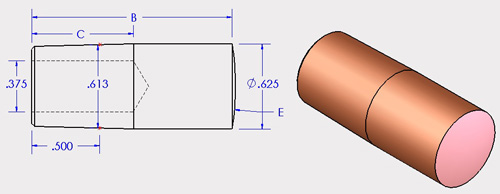

Radius Nose Type Straight Electrodes
| #5 RW Taper | |||||
 |
|||||
| AIT PART # | CMW PART # | Material (RWMA Alloy #) | Over-All Length (B) | Hole Depth (C) | Spherical Radius (E) |
| SE-R-5-1-B1.5C.75E2 | 1523 | Class 1 Copper (1.15000) | 1-1/2 | 3/4 | 2 |
| SE-R-5-2-B1.5C.75E2 | 3523 | Class 2 Copper (2.18200) | 1-1/2 | 3/4 | 2 |
| SE-R-5-CNB-B1.5C.75E2 | 5523 | CuNiBe (3.17510) | 1-1/2 | 3/4 | 2 |
| SE-R-5-1-B2C1.25E2 | 1525 | Class 1 Copper (1.15000) | 2 | 1-1/4 | 2 |
| SE-R-5-2-B2C1.25E2 | 3525 | Class 2 Copper (2.18200) | 2 | 1-1/4 | 2 |
| SE-R-5-CNB-B2C1.25E2 | 5525 | CuNiBe (3.17510) | 2 | 1-1/4 | 2 |
| SE-R-5-1-B2.5C1.75E2 | 1527 | Class 1 Copper (1.15000) | 2-1/2 | 1-3/4 | 2 |
| SE-R-5-2-B2.5C1.75E2 | 3527 | Class 2 Copper (2.18200) | 2-1/2 | 1-3/4 | 2 |
| SE-R-5-CNB-B2.5C1.75E2 | 5527 | CuNiBe (3.17510) | 2-1/2 | 1-3/4 | 2 |
| SE-R-5-1-B3C2.25E2 | 1529 | Class 1 Copper (1.15000) | 3 | 2-1/4 | 2 |
| SE-R-5-2-B3C2.25E2 | 3529 | Class 2 Copper (2.18200) | 3 | 2-1/4 | 2 |
| SE-R-5-CNB-B3C2.25E2 | 5529 | CuNiBe (3.17510) | 3 | 2-1/4 | 2 |
| SE-R-5-1-B4C3.25E2 | 15218 | Class 1 Copper (1.15000) | 4 | 3-1/4 | 2 |
| SE-R-5-2-B4C3.25E2 | 35218 | Class 2 Copper (2.18200) | 4 | 3-1/4 | 2 |
| SE-R-5-CNB-B4C3.25E2 | 55218 | CuNiBe (3.17510) | 4 | 3-1/4 | 2 |
| SE-R-5-1-B1.5C.75E10 | 1623 | Class 1 Copper (1.15000) | 1-1/2 | 3/4 | 10 |
| SE-R-5-2-B1.5C.75E10 | 3623 | Class 2 Copper (2.18200) | 1-1/2 | 3/4 | 10 |
| SE-R-5-CNB-B1.5C.75E10 | 5623 | CuNiBe (3.17510) | 1-1/2 | 3/4 | 10 |
| SE-R-5-1-B2C1.25E10 | 1625 | Class 1 Copper (1.15000) | 2 | 1-1/4 | 10 |
| SE-R-5-2-B2C1.25E10 | 3625 | Class 2 Copper (2.18200) | 2 | 1-1/4 | 10 |
| SE-R-5-CNB-B2C1.25E10 | 5625 | CuNiBe (3.17510) | 2 | 1-1/4 | 10 |
| SE-R-5-1-B2.5C1.75E10 | 1627 | Class 1 Copper (1.15000) | 2-1/2 | 1-3/4 | 10 |
| SE-R-5-2-B2.5C1.75E10 | 3627 | Class 2 Copper (2.18200) | 2-1/2 | 1-3/4 | 10 |
| SE-R-5-CNB-B2.5C1.75E10 | 5627 | CuNiBe (3.17510) | 2-1/2 | 1-3/4 | 10 |
| SE-R-5-1-B3C2.25E10 | 1629 | Class 1 Copper (1.15000) | 3 | 2-1/4 | 10 |
| SE-R-5-2-B3C2.25E10 | 3629 | Class 2 Copper (2.18200) | 3 | 2-1/4 | 10 |
| SE-R-5-CNB-B3C2.25E10 | 5629 | CuNiBe (3.17510) | 3 | 2-1/4 | 10 |
| SE-R-5-1-B4C3.25E10 | 16218 | Class 1 Copper (1.15000) | 4 | 3-1/4 | 10 |
| SE-R-5-2-B4C3.25E10 | 36218 | Class 2 Copper (2.18200) | 4 | 3-1/4 | 10 |
| SE-R-5-CNB-B4C3.25E10 | 56218 | CuNiBe (3.17510) | 4 | 3-1/4 | 10 |
| SE-R-5-1-B2C1.25E3 | 1825 | Class 1 Copper (1.15000) | 2 | 1-1/4 | 3 |
| SE-R-5-2-B2C1.25E3 | 3825 | Class 2 Copper (2.18200) | 2 | 1-1/4 | 3 |
| SE-R-5-CNB-B2C1.25E3 | 5825 | CuNiBe (3.17510) | 2 | 1-1/4 | 3 |
| SE-R-5-1-B3C2.25E3 | 1829 | Class 1 Copper (1.15000) | 3 | 2-1/4 | 3 |
| SE-R-5-2-B3C2.25E3 | 3829 | Class 2 Copper (2.18200) | 3 | 2-1/4 | 3 |
| SE-R-5-CNB-B3C2.25E3 | 5829 | CuNiBe (3.17510) | 3 | 2-1/4 | 3 |
| SE-R-5-1-B2C1.25E4 | 1925 | Class 1 Copper (1.15000) | 2 | 1-1/4 | 4 |
| SE-R-5-2-B2C1.25E4 | 3925 | Class 2 Copper (2.18200) | 2 | 1-1/4 | 4 |
| SE-R-5-CNB-B2C1.25E4 | 5925 | CuNiBe (3.17510) | 2 | 1-1/4 | 4 |
| SE-R-5-1-B3C2.25E4 | 1929 | Class 1 Copper (1.15000) | 3 | 2-1/4 | 4 |
| SE-R-5-2-B3C2.25E4 | 3929 | Class 2 Copper (2.18200) | 3 | 2-1/4 | 4 |
| SE-R-5-CNB-B3C2.25E4 | 5929 | CuNiBe (3.17510) | 3 | 2-1/4 | 4 |
