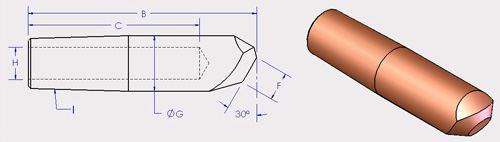

30° Offset Nose Type Straight Electrodes


SE-30deg-offset
AIT PART # CMW PART # Material (RWMA Alloy #)  (B)  (C) (F) (G)  (H) Taper (I)
SE-O30-4-1-B2C1.5F.25G.482H.281I4RW 16-2491 Class 1 Copper (1.15000) 2 1-1/2 1/4 .482 9/32 4RW
SE-O30-4-2-B2C1.5F.25G.482H.281I4RW 16-2492 Class 2 Copper (2.18200) 2 1-1/2 1/4 .482 9/32 4RW
SE-O30-5-1-B2.5C2F.375G.625H.281I5RW 16-2493 Class 1 Copper (1.15000) 2-1/2 2 3/8 .625 3/8 5RW
SE-O30-5-2-B2.5C2F.375G.625H.281I5RW 16-2494 Class 2 Copper (2.18200) 2-1/2 2 3/8 .625 3/8 5RW
SE-O30-7-1-B3C2.25F.5G.875H.281I7RW 16-2495 Class 1 Copper (1.15000) 3 2-1/4 1/2 .875 1/2 7RW
SE-O30-7-2-B3C2.25F.5G.875H.281I7RW 16-2496 Class 2 Copper (2.18200) 3 2-1/4 1/2 .875 1/2 7RW
